Electrical Troubleshooting

Can work safely around electrical systems and find and clear faults in control panels and equipment.

Simulations: 5 simulations
Issued by: SimInsights

Simulations

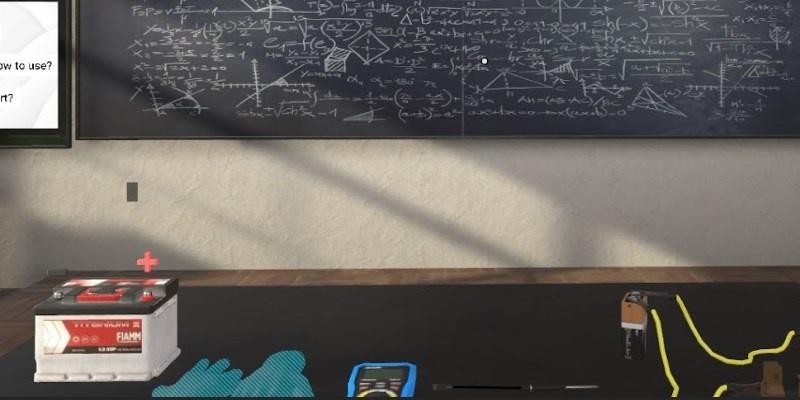

Electrical
Multimeter offers a safe and controlled environment for learners to practice their skills without the risk of damaging equipment or causing electrical hazards.
EngineeringGrades 6-12VRDesktopWeb
VR Safety Training for Electric Power Industry
This simulation guides you through proper PPE use, voltage testing, isolating circuits, and connecting new wires. Practice in a safe environment and avoid electric shock hazards!
ManufacturingGrades 9-12VRDesktopWeb

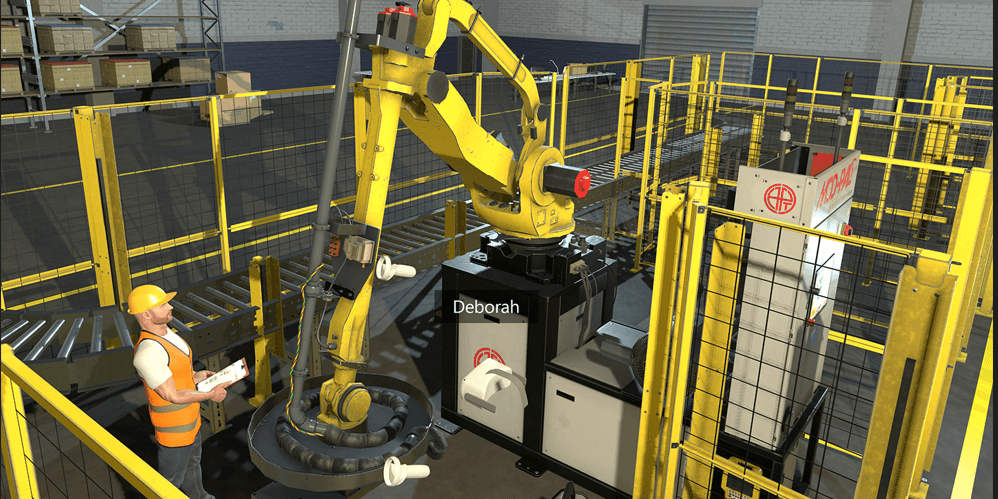

Clear the Fault
Clear Fault is a virtual training tool designed to teach maintenance technicians the proper process for identifying and clearing faults in industrial machinery.
ManufacturingGrades 9-12VRDesktopWeb
Troubleshooting a Live Control Panel
Face a live electrical panel in a data center: put on your dielectric gloves, hard hat, and safety glasses, mark off the hazard zone, and use a voltage tester to locate the isolation point before you touch a single wire. Once it's confirmed safe, you'll lock out the circuit breaker and connect the new wire — the full troubleshoot-and-repair sequence, minus the real voltage.
ManufacturingVRDesktopWeb

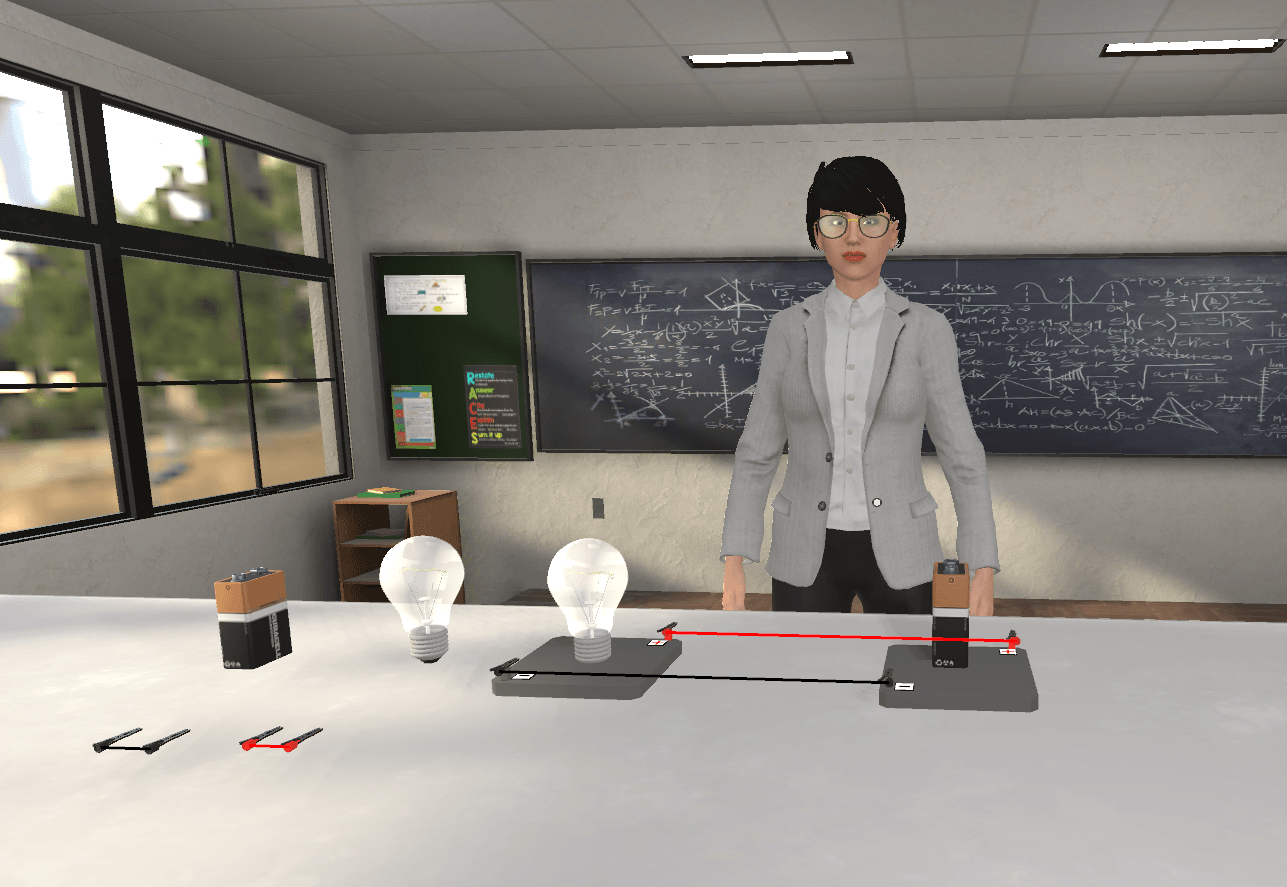

Troubleshooting Failure (1 Fault) 1
In this troubleshooting simulation, learners diagnose a faulty electrical device by inspecting an original configuration and comparing it against a set of guaranteed-working stock materials. Learners identify which component or components have failed, then use the on-hand spares to determine and confirm the correct point of failure.
EngineeringVRDesktopWeb
